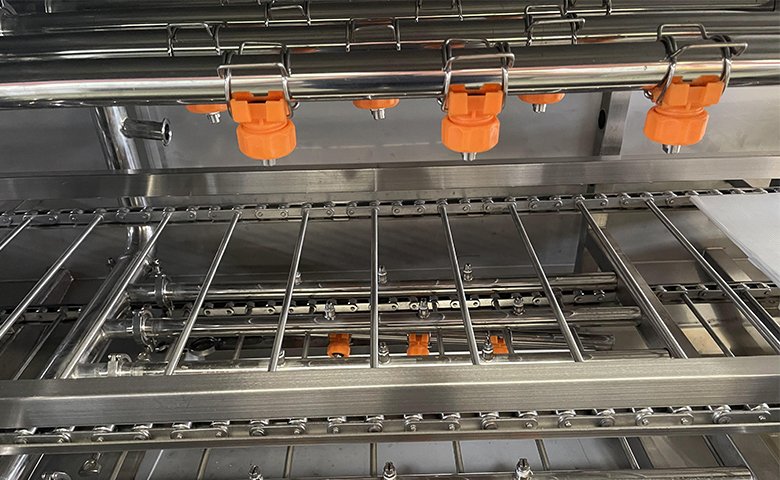

Conveying system
The conveying device adopts frequency conversion speed regulation, the conveying chain speed of 0.7-7 m/min can be adjusted to meet the cleaning requirements under different conditions;
Auto parts box washer with durable, easily exchangeable spray nozzles, specifically designed for effectively cleaning auto parts boxes.
Incorporating separate main wash and after- rinsing sections, the box washer heats circulation water internally for the main wash cycle, which is filtered continually.
Fresh water rinsing completes the cycle in a separate zone of the machine, which can include the use of a disinfectant for increased hygiene.
The conveying device adopts frequency conversion speed regulation, the conveying chain speed of 0.7-7 m/min can be adjusted to meet the cleaning requirements under different conditions;

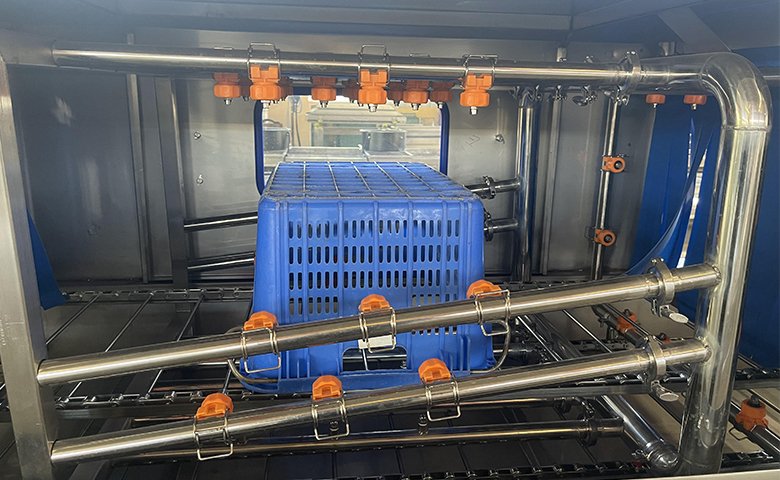

Nozzles resistant to high temperature and high pressure, selection of high-quality detachable products.
The nozzles can be adjusted according to different needs of the spray position angle, the top nozzle can be freely adjusted 360 degrees.
The nozzles can be disassembled without using any tools, and the direction is easy to adjust;

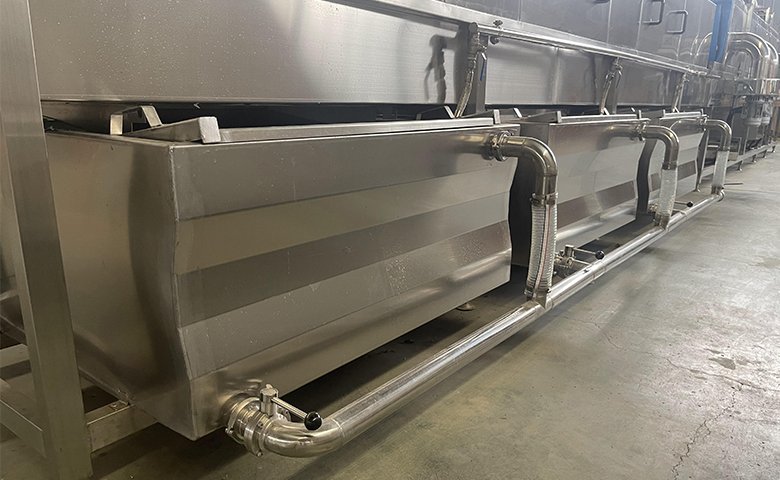

Reasonable waterway design to achieve water saving speed, water consumption is only 500L/ hour; Each water tank has an automatic water supply system, and automatically stop the water when it reaches the highest water level.
The water of each water tank and overflow mouth are discharged uniformly to avoid large areas of water in the cleaning place caused by separate water, and to ensure that the workplace is clean and tidy.

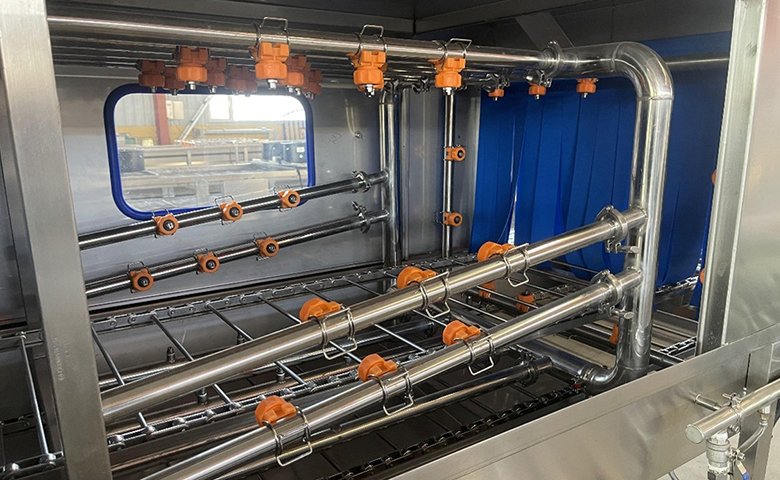

In order to facilitate the disassembly of equipment and the thorough disinfection of components and cleaning of internal pipelines, industrial quick plug connectors are used for pipeline connection.
The cleaning pump is stainless steel pump, which can withstand high temperature. The first two sections of cleaning the equipment are high-temperature water. Such a pump will not cause burning like an ordinary pump. The third section cleaning uses a vertical multistage pump for high pressure spray cleaning to make the cleaning more thorough.

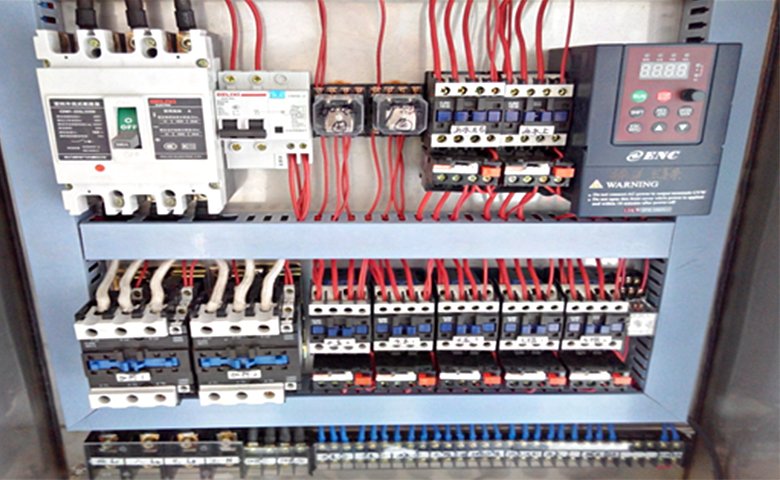

Adopt the China famous brand (delixi), which can be customized if special brand is required.
Mainly used for auto parts box, engine parts box, electronic element box, lamp turnover box, automobile bearing box, plastic basket cleaning.
Systems for every size and type of auto parts box washer
Open design made in an easy to clean machine, inside and out
Modular tunnel washer that is suitable for washing various products. Can be further customized with drying, filtration and handling options.
Variable speed drives – ranging from 300 units per hour up to 1000 units per hour.
Stainless steel, quick release 360° jetting.
Washing pressures of 60-80 psi provide an effective wash to ensure all surfaces of your product are thoroughly cleaned.
Model: length 5-10m can be customized (washing tunnel width 0.6-1.5m can be customized, the machine size is mainly based on box size and capacity)
Power: power consumption is different according to the capacity and machine size
Cleaning efficiency: 300-1000 pcs/h
Heating via electric, steam.
Pre-wash and heated rinse options.
Air knife blowers for water removal.
Heated drying tunnels.
High pressure jetting for stubborn soil and removal.
Auto parts box washer with durable, easily exchangeable spray nozzles, specifically designed for effectively cleaning auto parts boxes.
Incorporating separate main wash and after- rinsing sections, the box washer heats circulation water internally for the main wash cycle, which is filtered continually.
Fresh water rinsing completes the cycle in a separate zone of the machine, which can include the use of a disinfectant for increased hygiene.
