The box/basket washer can save up to 70% water consumption, save 7 to 8 people than the old manual cleaning method, and is an ideal cleaning equipment for food processing plants such as slaughtering, meat, aquatic products, fruits and vegetables, beverages, brewing, etc
After the machine is opened, the conveyor or manual feeding to the washer transmission track, first for hot alkali water spraying, and then hot water high-pressure spraying, and then for tap water circulation spray.
With an independent circulation water tank, filter can be easily extracted to remove the filter and cleaning debris.
One machine multi-purpose, cost saving.

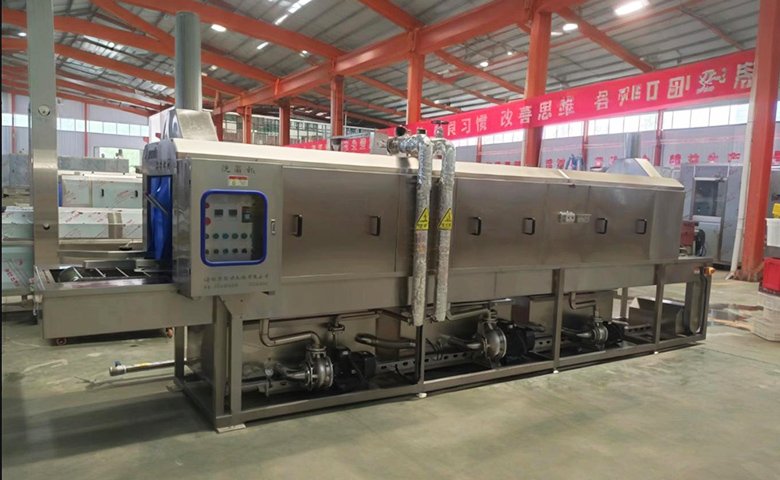

The machine is mainly composed of pre-washing, main cleaning and rinsing section, each section has its own water tank, there will be no mixing of water. The pre-washing tank, the main cleaning tank is equipped with steam heating and temperature control device, in order to adjust the water temperature to achieve the cleaning effect;

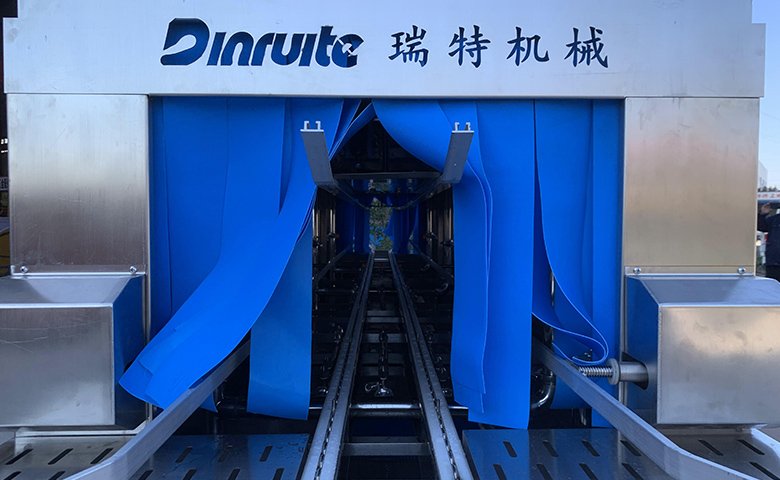

The transmission guide rod can be adjusted, it can be suitable for a variety of different sizes of equipment cleaning to achieve a multi-purpose machine;
The conveying device adopts frequency conversion speed regulation, the conveying chain speed of 0.7-7 m/min can be adjusted to meet the cleaning requirements under different conditions;

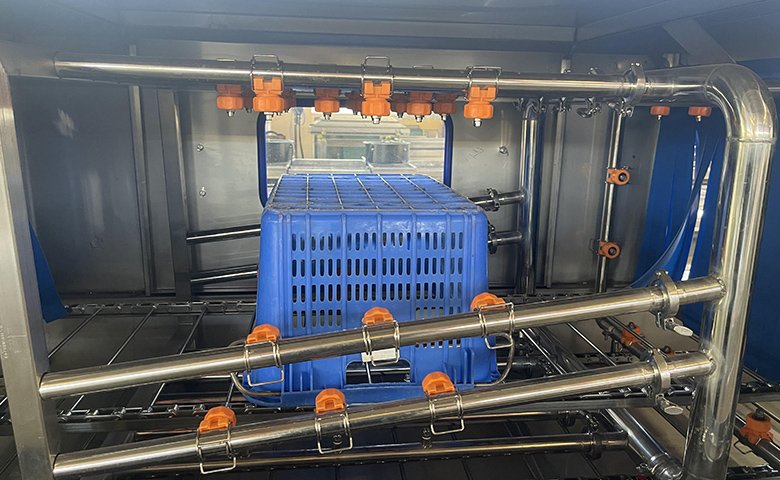

Nozzles resistant to high temperature and high pressure, selection of high-quality detachable products.
The nozzles can be adjusted according to different needs of the spray position angle, the top nozzle can be freely adjusted 360 degrees.
The nozzles can be disassembled without using any tools, and the direction is easy to adjust;

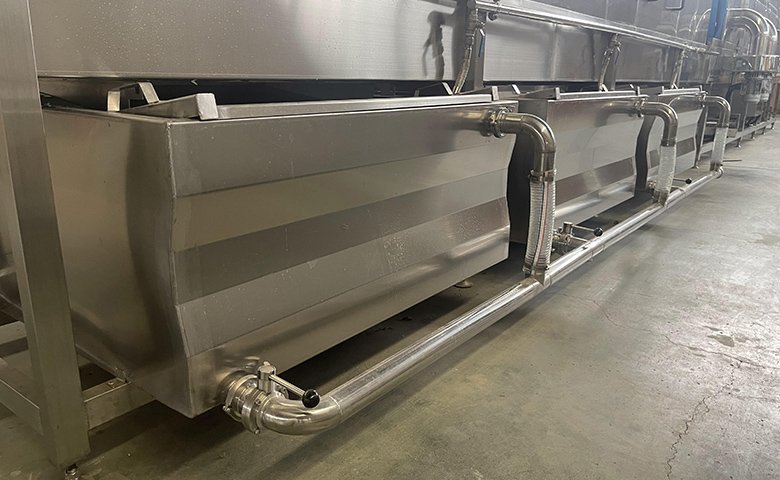

Reasonable waterway design to achieve water saving speed, water consumption is only 500L/ hour; Each water tank has an automatic water supply system, and automatically stop the water when it reaches the highest water level.

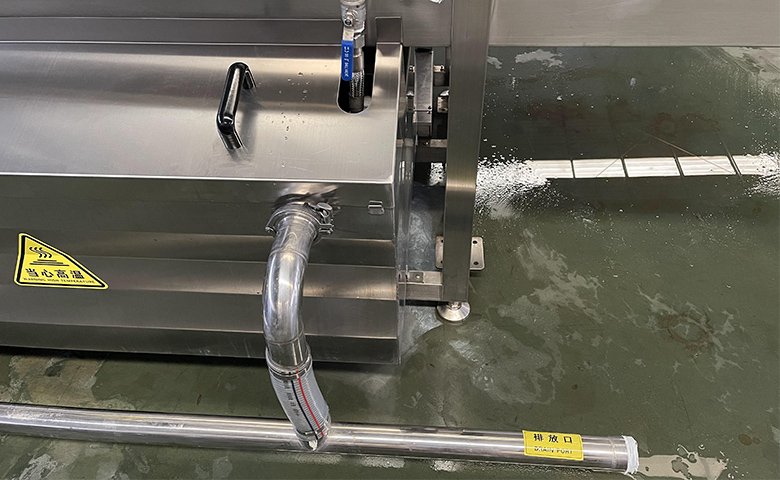

The water of each water tank and overflow mouth are discharged uniformly to avoid large areas of water in the cleaning place caused by separate water, and to ensure that the workplace is clean and tidy.

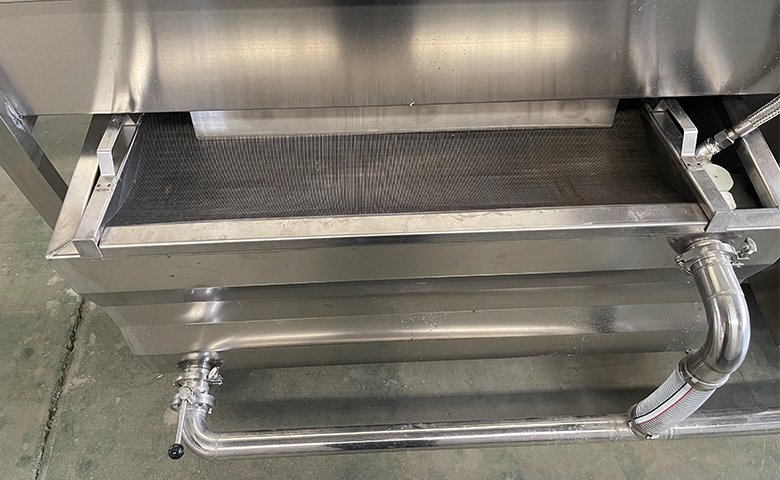

Pre-washing and main cleaning parts are equipped with a filter system, filter tank easy to take and clean;
Double-layer filtration is used to ensure the cleanliness of the circulating water and maximize the saving of water.

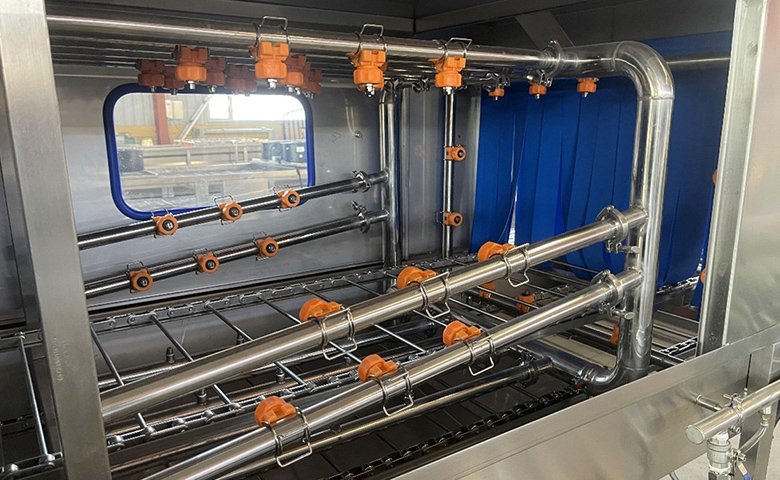

In order to facilitate the disassembly of equipment and the thorough disinfection of components and cleaning of internal pipelines, industrial quick plug connectors are used for pipeline connection.
The cleaning pump is stainless steel pump, which can withstand high temperature. The first two sections of cleaning the equipment are high-temperature water. Such a pump will not cause burning like an ordinary pump. The third section cleaning uses a vertical multistage pump for high pressure spray cleaning to make the cleaning more thorough.

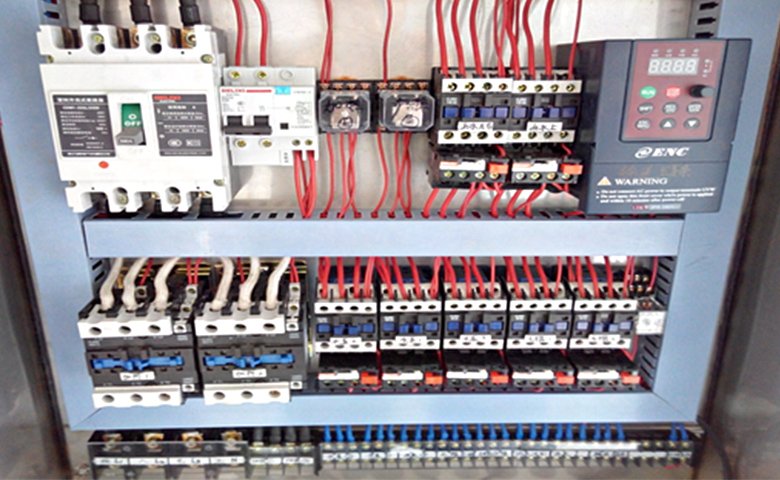

Adopt the China famous brand (delixi), which can be customized if special brand is required.
Turnover basket/box washer mainly used in slaughtering, meat, aquatic products, fruits and vegetables, beverages, brewing and other food processing plants or food logistics centers, distribution centers, etc. It is suitable for all kinds of turnover boxes, trays, baskets and other containers cleaning and disinfection.
Systems for every size and type of basket/box
Open design made in an easy to clean machine, inside and out
Modular tunnel washer that is suitable for washing various products. Can be further customized with drying, filtration and handling options
Variable speed drives – ranging from 300 units per hour up to 1000 units per hour
Stainless steel, quick release 360° jetting
Washing pressures of 60-80 psi provide an effective wash to ensure all surfaces of your product are thoroughly cleaned.
Model: length 5-10m can be customized (washing tunnel width 0.6-1.5m can be customized, the size is mainly based on basket/box size and capacity).
Power: power consumption is different according to the capacity and machine size.
Cleaning efficiency: 300-1000 pcs/h
Heating via electric, steam
Pre-wash and heated rinse options
Air knife blowers for water removal
Heated drying tunnels
High pressure jetting for stubborn soil and removal
The box/basket washer can save up to 70% water consumption, save 7 to 8 people than the old manual cleaning method, and is an ideal cleaning equipment for food processing plants such as slaughtering, meat, aquatic products, fruits and vegetables, beverages, brewing, etc
After the machine is opened, the conveyor or manual feeding to the washer transmission track, first for hot alkali water spraying, and then hot water high-pressure spraying, and then for tap water circulation spray.
With an independent circulation water tank, filter can be easily extracted to remove the filter and cleaning debris.
One machine multi-purpose, cost saving.
