Unnimersed filtration.
Variable output to suit requirements.
Spray system to maximize pan washing performance.
Conveyor width is adjusted to suit items to be cleaned.
Can be installed on automatic production lines or offline for manual loading and unloading.

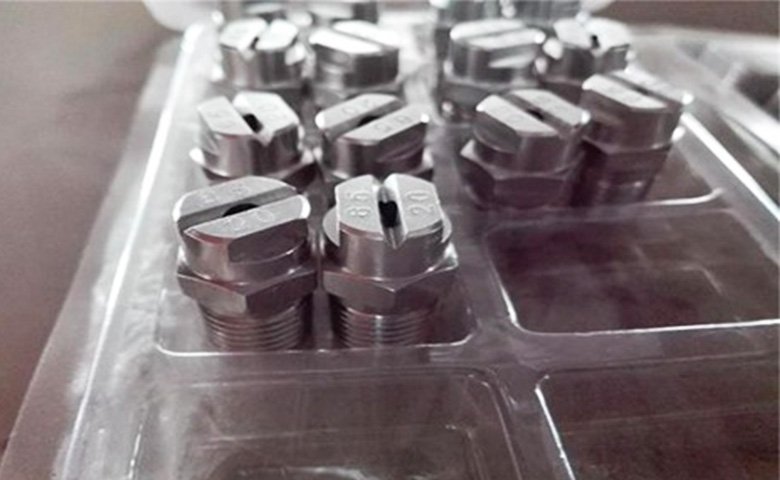

Nozzles resistant to high temperature and high pressure, selection of high-quality detachable products. The nozzles can be adjusted according to different needs of the spray position angle, the top nozzle can be freely adjusted 360 degrees.

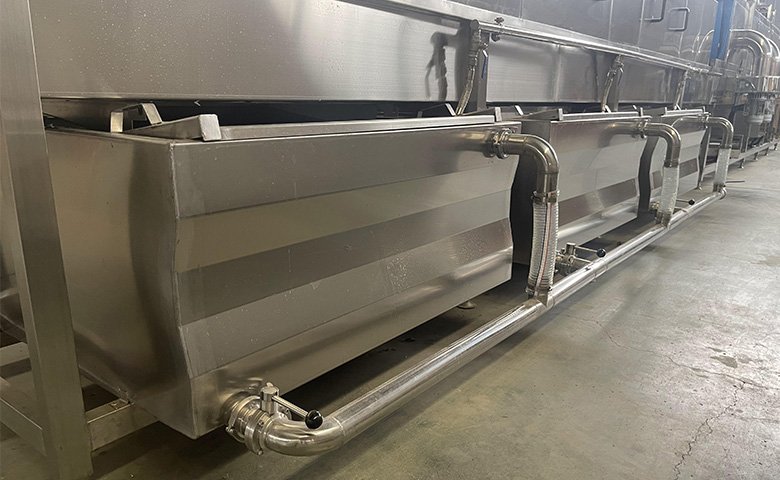

Water inlet pipe unity: the water inlet pipe of each water tank (water storage 400L) is the same pipe, only need to connect the water supply source before installation, each water tank has an automatic water supply system, and automatically stop the water when it reaches the highest water level.

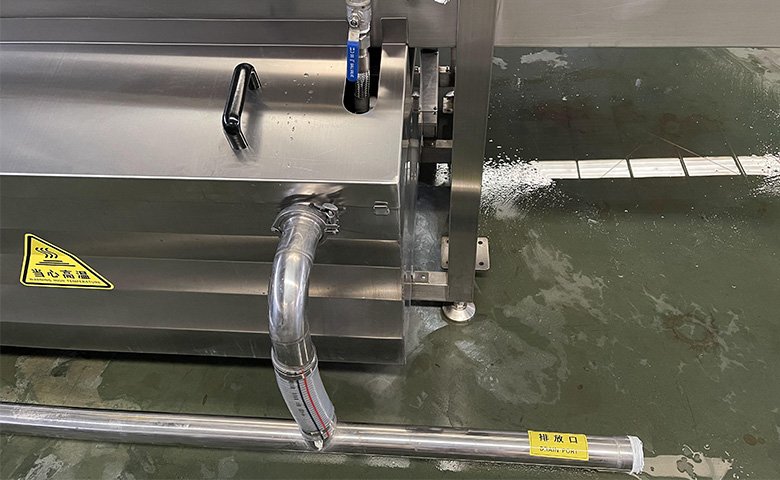

The water of each water tank and overflow mouth are discharged uniformly to avoid large areas of water in the cleaning place caused by separate water, and to ensure that the workplace is clean and tidy.

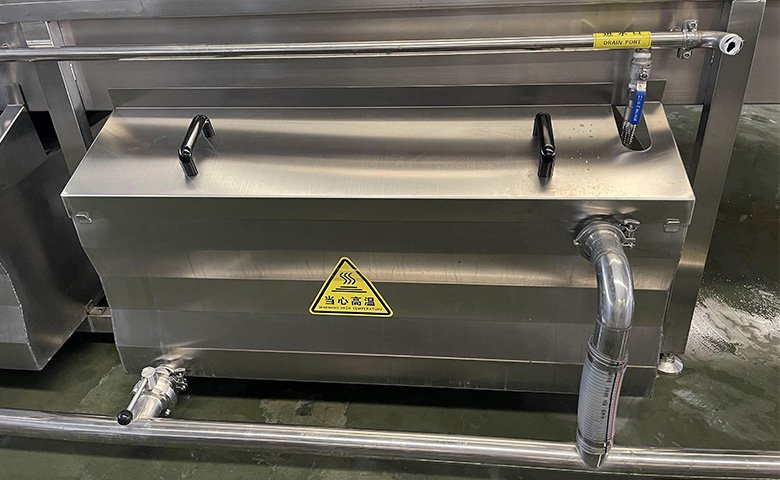

The water tank is inclined design and drain pipe is at the lowest part of the tank, so it is more conducive to drainage and sewage.

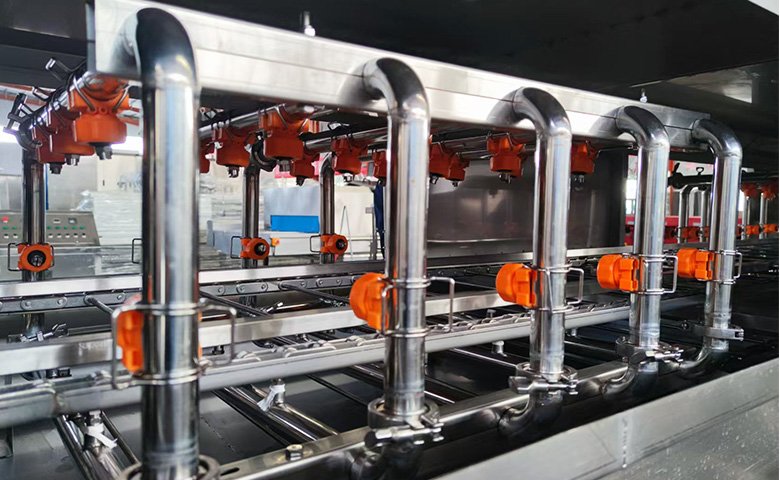

In order to facilitate the disassembly of equipment and the thorough disinfection of components and cleaning of internal pipelines, industrial quick plug connectors are used for pipeline connection.

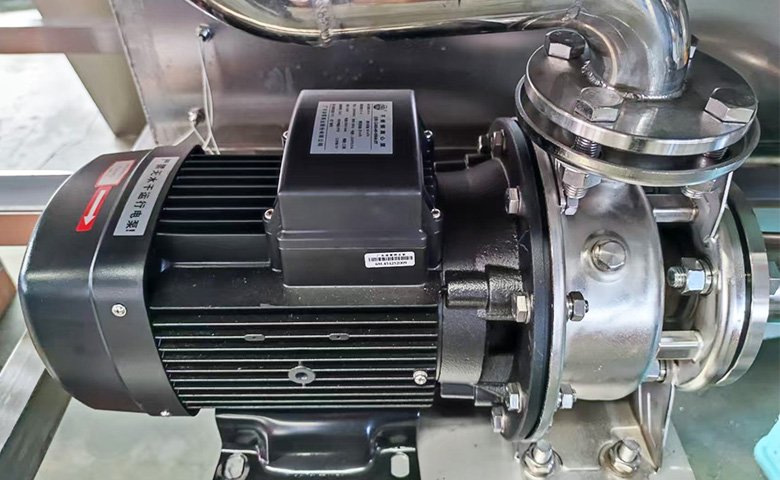

The cleaning pump is stainless steel pump, which can withstand high temperature. The first two sections of cleaning the equipment are high-temperature water. Such a pump will not cause burning like an ordinary pump. The third section cleaning uses a vertical multistage pump for high pressure spray cleaning to make the cleaning more thorough.
Electric control box made of stainless steel, waterproof and dustproof, long service life.
The baking tray washer is suitable for continuous cleaning of baking pans, frozen trays, seafood trays, chocolate and cookies trays and moulds. The drying function can also be added after cleaning according to requirements.
Water recycling, water saving and environmental protection, reduce pollution to ensure the service life of the equipment.
Unified water intake and drainage, water temperature control, water control, reduce manual operation, it only need 2 people to operate.
The effect is thoroughgoing, the cleaning amount is large, and the hygiene is controllable, saving time and energy.
Model: length 3-10m can be customized (washing tunnel width 0.6-1.5m can be customized, the machine size is mainly based on pan size and capacity)
Power: power consumption is different according to the capacity and machine size
Cleaning efficiency: 100-1000 pcs/h
Single and twin track options.
Heating via electric, steam.
Pre-wash and heated rinse options.
Air knife blowers for water removal.
Heated drying tunnels.
High pressure jetting for removing oil and other residue.
Unnimersed filtration.
Variable output to suit requirements.
Spray system to maximize pan washing performance.
Conveyor width is adjusted to suit items to be cleaned.
Can be installed on automatic production lines or offline for manual loading and unloading.
