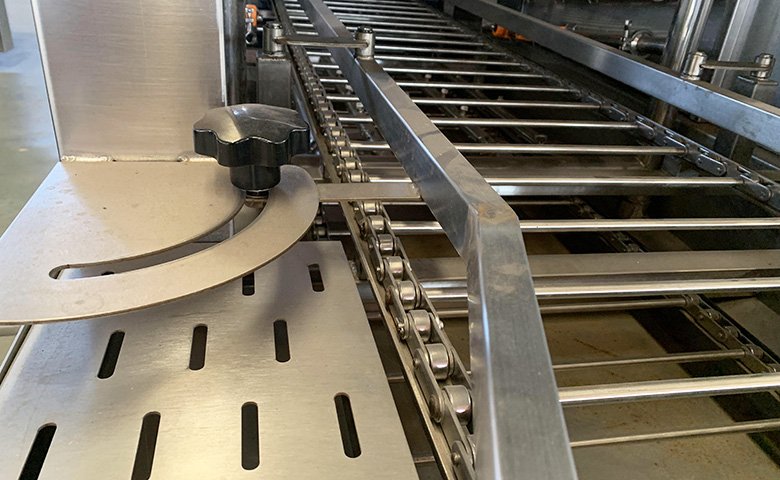

Adjustable guide rod
The transmission guide rod can be adjusted, it can be suitable for a variety of different sizes of equipment cleaning to achieve a multi-purpose machine.
Clean trays are essential for the continuity of your organization. We offer washers for cleaning food, seafood, stainless steel and plastic trays, baking pan, frozen plate, electronic parts, pharmaceutical and chemical industries etc. All our tray washers are constructed out of stainless steel and have an open design, this simplifies the use for the operator. Cleaning and maintaining your machinery become easier with a smart design.
The transmission guide rod can be adjusted, it can be suitable for a variety of different sizes of equipment cleaning to achieve a multi-purpose machine.

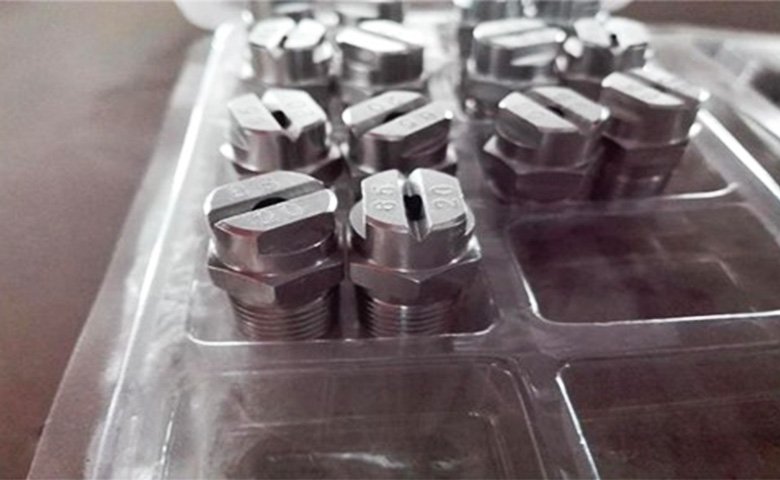

Nozzles resistant to high temperature and high pressure, selection of high-quality detachable products. The nozzles can be adjusted according to different needs of the spray position angle, the top nozzle can be freely adjusted 360 degrees.

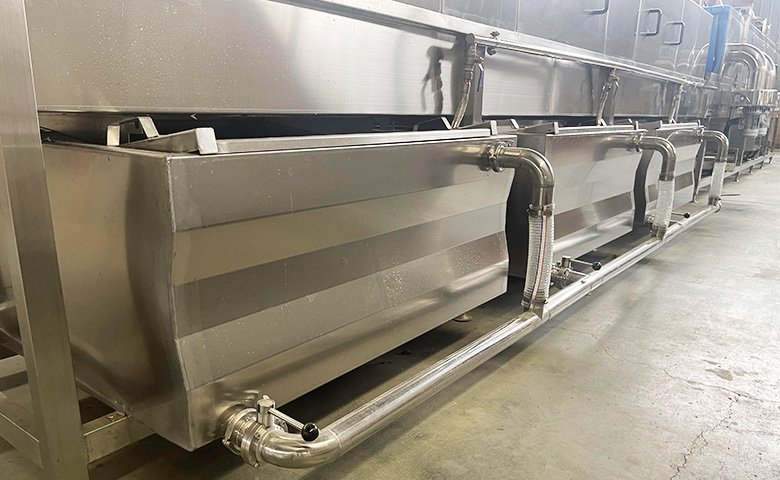

Water inlet pipe unity: the water inlet pipe of each water tank (water storage 400L) is the same pipe, only need to connect the water supply source before installation, each water tank has an automatic water supply system, and automatically stop the water when it reaches the highest water level.

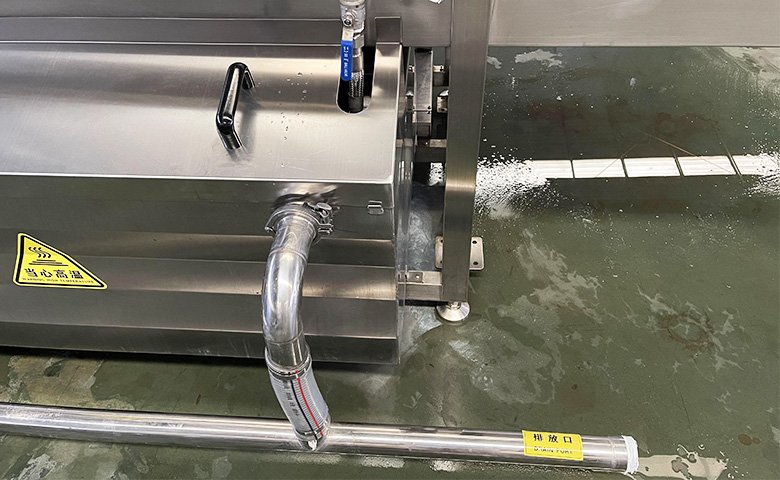

The water of each water tank and overflow mouth are discharged uniformly to avoid large areas of water in the cleaning place caused by separate water, and to ensure that the workplace is clean and tidy.

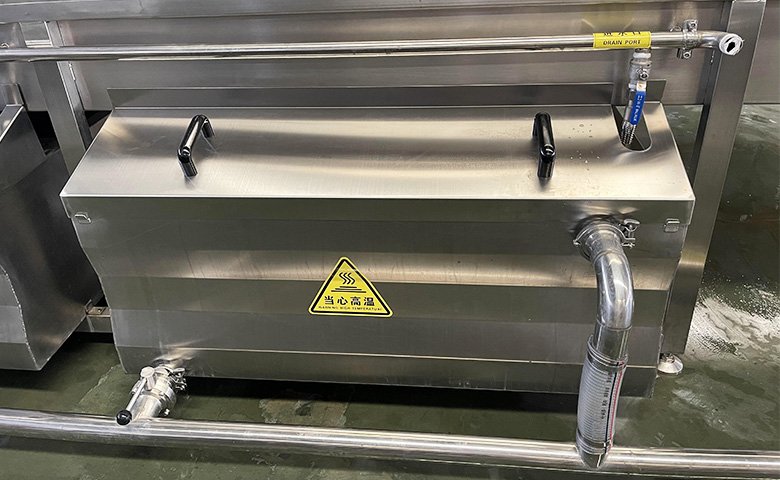

The water tank is inclined design and drain pipe is at the lowest part of the tank, so it is more conducive to drainage and sewage.

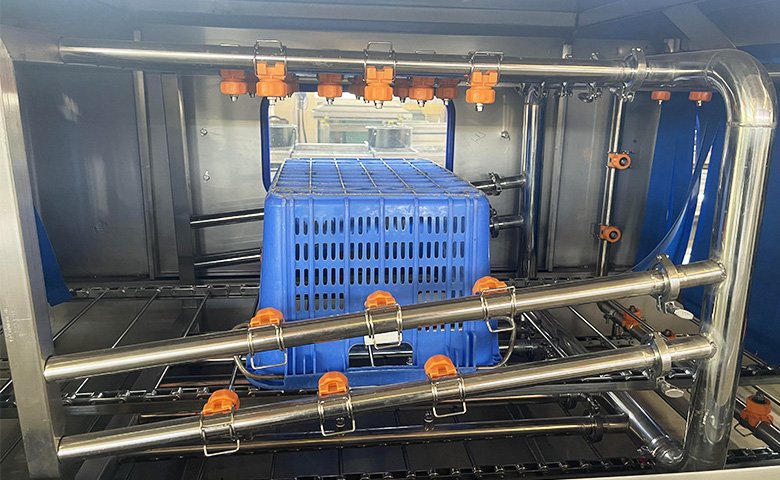

In order to facilitate the disassembly of equipment and the thorough disinfection of components and cleaning of internal pipelines, industrial quick plug connectors are used for pipeline connection.

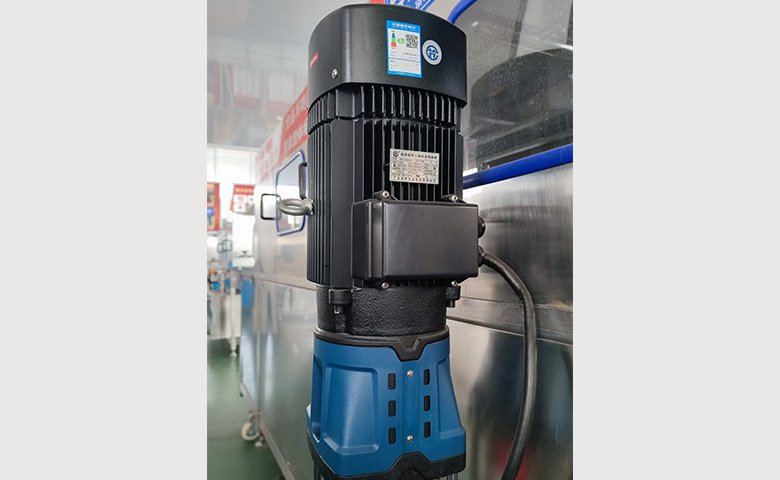

The cleaning pump is stainless steel pump, which can withstand high temperature. The first two sections of cleaning the equipment are high-temperature water. Such a pump will not cause burning like an ordinary pump. The third section cleaning uses a vertical multistage pump for high pressure spray cleaning to make the cleaning more thorough.

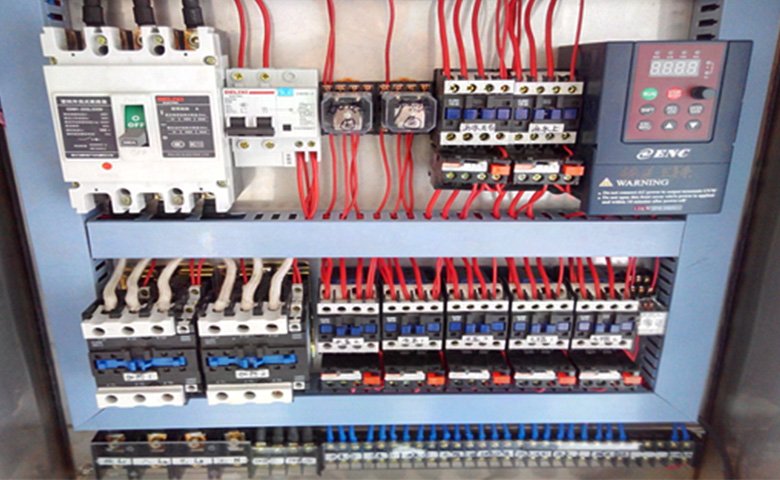

Adopt the China famous brand (delixi), which can be customized if special brand is required.
Clean trays are essential for the continuity of your organization. We offer washers for cleaning food, seafood, stainless steel and plastic trays, baking pan, frozen plate, electronic parts, pharmaceutical and chemical industries etc. All our tray washers are constructed out of stainless steel and have an open design, this simplifies the use for the operator. Cleaning and maintaining your machinery become easier with a smart design.
Systems for every size and type of trays
Open design made in an easy to clean machine, inside and out
Modular tunnel washer that is suitable for washing various products. Can be further customized with drying, filtration and handling options
Variable speed drives – ranging from 100 units per hour up to 1000 units per hour
Stainless steel, quick release 360° jetting
Washing pressures of 60-80 psi provide an effective wash to ensure all surfaces of your product are thoroughly cleaned
Model: length 3-10m can be customized (washing tunnel width 0.6-1.5m can be customized, the size is mainly based on trays size and capacity)
Power: power consumption is different according to the capacity and machine size
Cleaning efficiency: 100-1000 pcs/h
Single and twin track options
Heating via electric, steam
Pre-wash and heated rinse options
Air knife blowers for water removal
Heated drying tunnels
High pressure jetting for labels and stubborn soil removal
Automatic filtration options
Clean trays are essential for the continuity of your organization. We offer washers for cleaning food, seafood, stainless steel and plastic trays, baking pan, frozen plate, electronic parts, pharmaceutical and chemical industries etc. All our tray washers are constructed out of stainless steel and have an open design, this simplifies the use for the operator. Cleaning and maintaining your machinery become easier with a smart design.
