Using high temperature (>80℃) and high pressure (0.2-0.7Mpa), the pallet is washed in four steps, and then the high-efficiency air-drying system is used to quickly remove the surface moisture of the container and reduce the turnover time.
The first step is to pre-wash containers that are not in direct contact with ingredients such as external pallet by means of high-flow spray, which is equivalent to soaking the containers, which is helpful for subsequent cleaning;
The second step uses high-pressure washing to separate the surface oil, dirt and other stains from the container;
The third step uses relatively clean circulating water to further rinse the container.
The fourth step is to use uncirculated clean water to rinse the residual sewage on the surface of the container, and to cool the tray after high temperature cleaning.

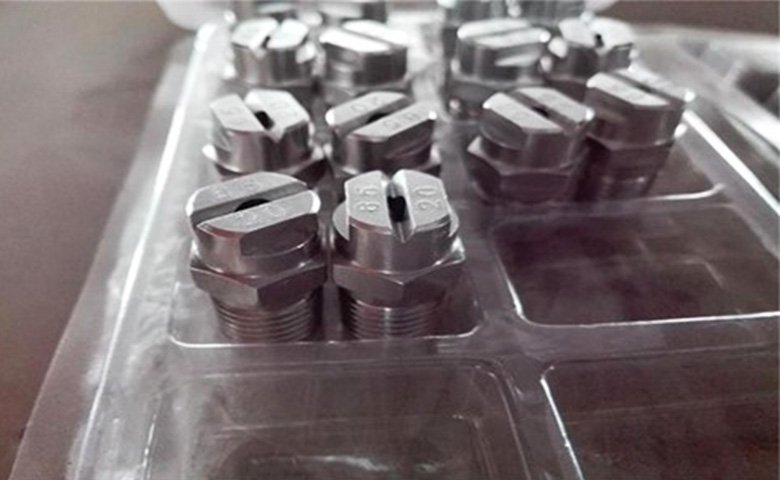

Cleaning nozzle three-dimensional quad-position installation structure, cold and hot water cleaning, cleaning effect is more perfect, each nozzle pipe can be reached without tools disassembly, convenient operation workers clean each shift without dead corners.

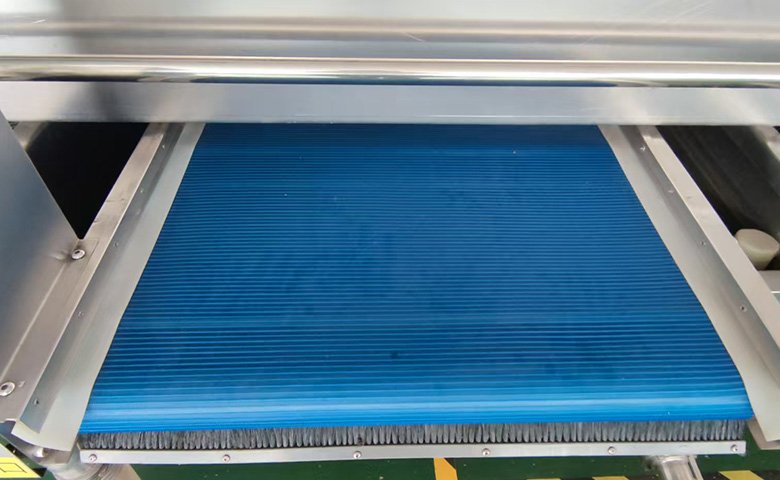

Each water tank is equipped with a filter device (internal filter device for three layers of filtration), it is easy to clean up dirt at any time.

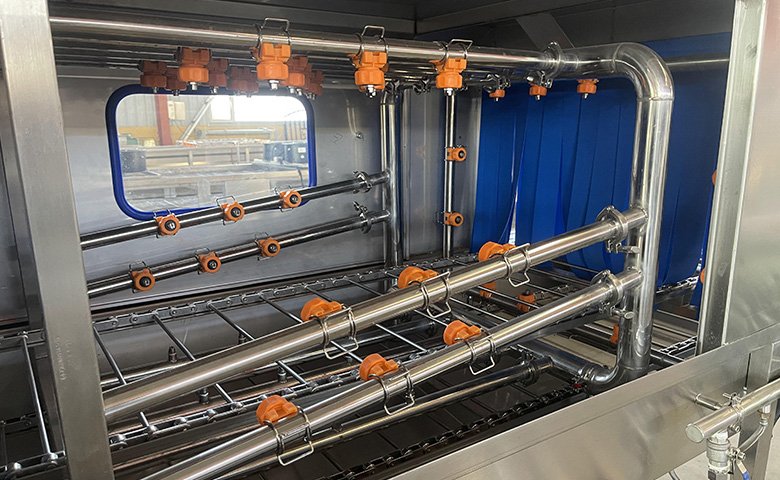

The main part of the shell can be detachable, all the pipes and joints are all quick change joint design can achieve no tools disassembly convenient health cleaning without dead corners.

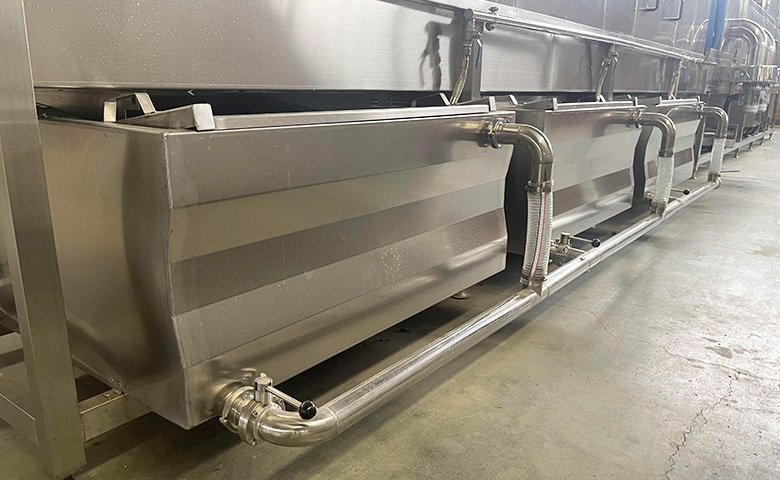

All water tanks of the machine are equipped with a sliding design, and all water tanks can be separately extracted to clean the equipment for easy operation and cleaning.

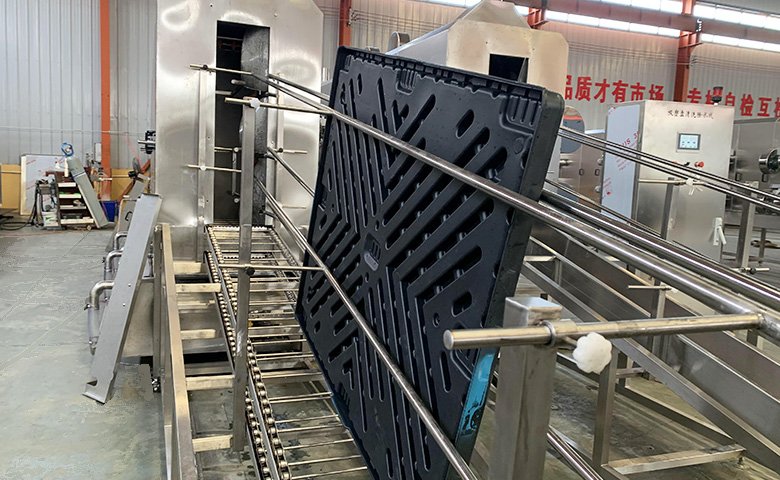

The inclined feeding channel reduces manpower, and the flange design prevents the pallet from sliding off the predetermined cleaning track.

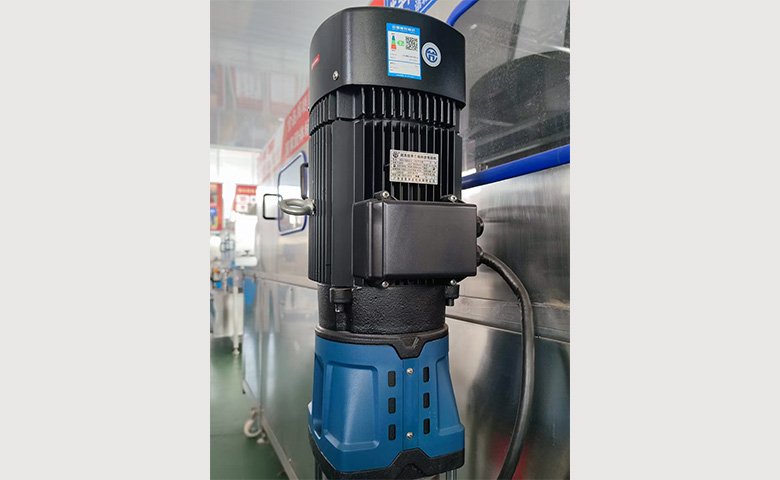

The cleaning pump is stainless steel pump, which can withstand high temperature. The first two sections of cleaning the equipment are high-temperature water. Such a pump will not cause burning like an ordinary pump. The third section cleaning uses a vertical multistage pump for high pressure spray cleaning to make the cleaning more thorough.

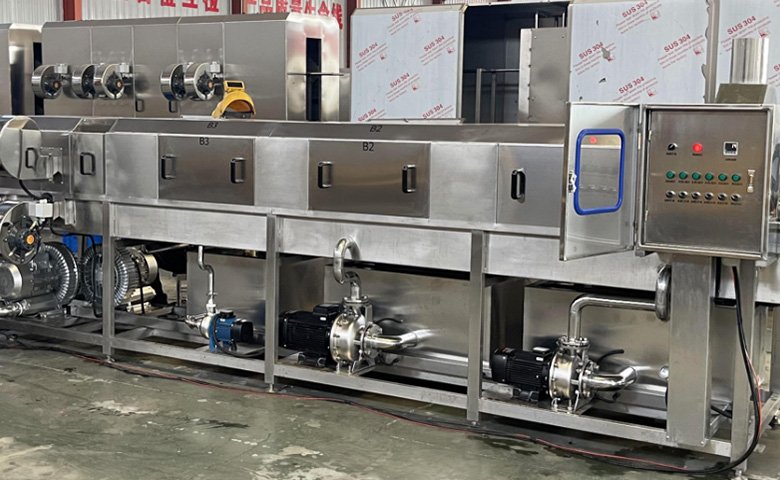

The drying function can be added according to requirements.

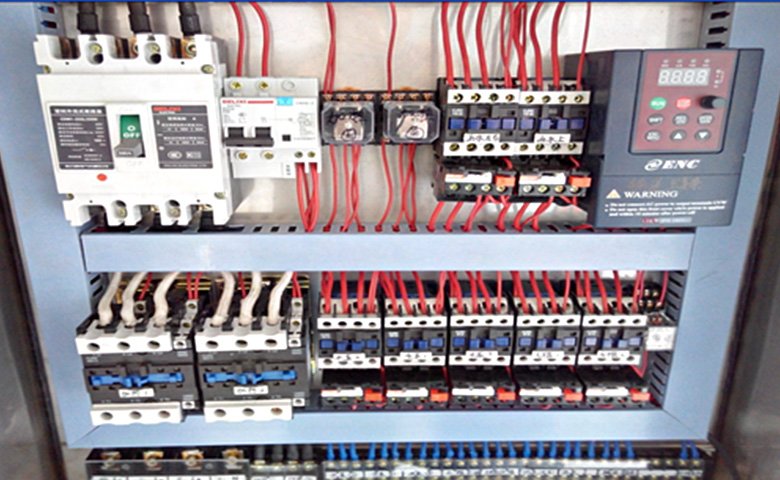

Adopt the China famous brand (delixi), which can be customized if special brand is required.
The pallet washer is suitable for logistics turnover of large pallets and blister dish, according to the size of the pallet and the degree of dirt, it mainly divided into two cleaning modes: vertical and horizontal cleaning, for the special dirty pallets, we will combine spray cleaning and brush cleaning to ensure the cleaning effect.
Systems for every size and type of pallet washer
Open design made in an easy to clean machine, inside and out
Modular tunnel washer that is suitable for washing various products. Can be further customized with drying, filtration and handling options
Variable speed drives – ranging from 100 units per hour up to 300 units per hour
Stainless steel, quick release 360° jetting
Washing pressures of 60-80 psi provide an effective wash to ensure all surfaces of your product are thoroughly cleaned
Model: length 5-10m can be customized (washing tunnel width 0.5-1.5m can be customized, the machine size is mainly based on pallet size and capacity)
Power: power consumption is different according to the capacity and machine size
Cleaning efficiency: 100-300 pcs/h
Manual or automatic feed options
De-stacking and restacking capabilities
Air knife drying
Steam or electric heating
Using high temperature (>80℃) and high pressure (0.2-0.7Mpa), the pallet is washed in four steps, and then the high-efficiency air-drying system is used to quickly remove the surface moisture of the container and reduce the turnover time.
The first step is to pre-wash containers that are not in direct contact with ingredients such as external pallet by means of high-flow spray, which is equivalent to soaking the containers, which is helpful for subsequent cleaning;
The second step uses high-pressure washing to separate the surface oil, dirt and other stains from the container;
The third step uses relatively clean circulating water to further rinse the container.
The fourth step is to use uncirculated clean water to rinse the residual sewage on the surface of the container, and to cool the tray after high temperature cleaning.
